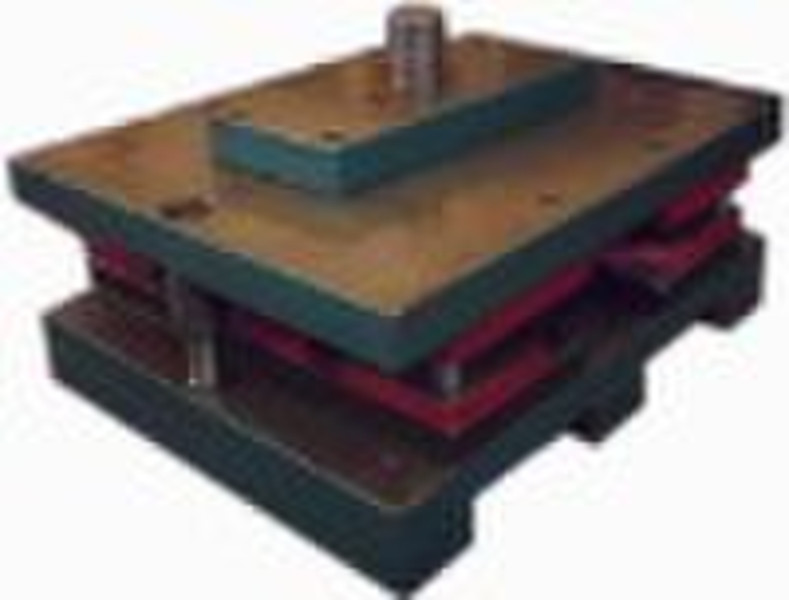

300x300 ceiling mold/Notching Die
Jin Guang Liang
Contact person
Basic Information
| Product Material | Metal |
|---|---|
| Shaping Mode | Punching Mold |
| Place of Origin | Guangdong China (Mainland) |
| Brand Name | Lesheng |
| Model Number | 300 ceiling |
Product details: 300x300 Notching Die The mold type: single blunt processes;Range: metal ceiling stamping products;Technology parameters: Procedure: cutting Angle pressure buckle dozen 1 set of trademark mode in any replacement (product brand);forming blank-holder mode 1 set can be blunt concave and convex (flat plate); Ps: 300x60 300x300,300x450, 300x480, 300x600 300x1200, etc, Processing dimension: the model or drawing according to the customer, Universal size; Note: according to customer request arbitrarily change product brand; Punch materials: aluminum and iron, metal stamping forming can be coated materials; Material thickness: 0.45-0.6 mm, 0.7-1.0 mm, etc. Punching effect: scrap rubber of corner cut is less than 0.05 mm; The formed ceiling board has standard dimension and complete cornerite and chamfer of four corners which can be assembled without gaps.Auxiliary equipment: 25T / 60T big table-board punch; Around 40T hydraulic press
Delivery terms and packaging
Packaging Detail: For mould:after assemble and clear mould we paint anti-rust fog or grease on mould then cover it with thin film and place it into a stable wooden box. Delivery Detail: 30 Days
Port: Guangzhou
